Installing NVIDIA Graphics Card Drivers on Proxmox VE 9 (manual procedure)

Targeted at Proxmox VE 9 (Debian Trixie). PVE 7 (Bullseye) and PVE 8 (Bookworm) are no longer covered.

What you'll do

1. Prepare the Proxmox VE 9 host (blacklist nouveau, repos, prerequisites).
2. Install the NVIDIA driver on the host.
3. Install the NVIDIA persistence service.
4. (Optional) Apply the keylase patch to lift the NVENC concurrent-session limit on consumer GPUs.
5. Wire the GPU into one or more LXC containers and install the matching driver inside each.

1. Prepare the host (PVE 9)

1.1 Blacklist nouveau

Check whether the open-source nouveau driver is already blacklisted:

cat /etc/modprobe.d/blacklist.conf

If blacklist nouveau does not appear, add it and reboot:

echo "blacklist nouveau" '>>' /etc/modprobe.d/blacklist.conf
reboot

1.2 Verify repositories (PVE 9 / Trixie)

If you ran the ProxMenux Post-Install script (or any other Proxmox post-install tooling), the repositories are already in place — skip this step.

Otherwise, on a vanilla PVE 9 install with no enterprise subscription:

nano /etc/apt/sources.list.d/proxmox.sources

Make sure it contains the no-subscription source for Trixie:

Types: deb
URIs: http://download.proxmox.com/debian/pve
Suites: trixie
Components: pve-no-subscription
Signed-By: /usr/share/keyrings/proxmox-archive-keyring.gpg

And the Debian sources at /etc/apt/sources.list.d/debian.sources:

Types: deb
URIs: http://deb.debian.org/debian/
Suites: trixie trixie-updates
Components: main contrib non-free non-free-firmware
Signed-By: /usr/share/keyrings/debian-archive-keyring.gpg

Types: deb
URIs: http://security.debian.org/debian-security/
Suites: trixie-security
Components: main contrib non-free non-free-firmware
Signed-By: /usr/share/keyrings/debian-archive-keyring.gpg

1.3 Update the system and install prerequisites

apt update && apt dist-upgrade -y

Install the build tools and kernel headers needed to compile the NVIDIA kernel module:

apt-get install -y git
apt-get install -qqy pve-headers-$(uname -r) gcc make

2. Install the NVIDIA driver on the host

2.1 Pick a driver version

Check the latest stable driver:

https://download.nvidia.com/XFree86/Linux-x86_64/latest.txt

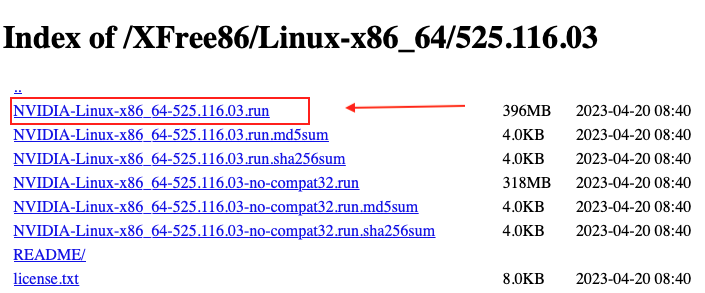

Replace latest.txt in the URL with the version number to find the installer file ending in .run. The full driver list is at:

https://download.nvidia.com/XFree86/Linux-x86_64/

Throughout the rest of this guide, replace <VERSION> with the actual version (for example 580.95.05).

2.2 Download and run the installer

mkdir -p /opt/nvidia
cd /opt/nvidia
wget https://download.nvidia.com/XFree86/Linux-x86_64/'<'VERSION'>'/NVIDIA-Linux-x86_64-'<'VERSION'>'.run
chmod +x NVIDIA-Linux-x86_64-'<'VERSION'>'.run

First pass — this disables nouveau and prepares the system:

./NVIDIA-Linux-x86_64-'<'VERSION'>'.run --no-questions --ui=none --disable-nouveau
reboot

After the host comes back, run the installer again to compile and install the kernel module:

/opt/nvidia/NVIDIA-Linux-x86_64-'<'VERSION'>'.run --no-questions --ui=none

2.3 Load NVIDIA modules at boot

Edit the modules-load configuration:

nano /etc/modules-load.d/modules.conf

Add the VFIO and NVIDIA modules:

vfio
vfio_iommu_type1
vfio_pci
vfio_virqfd
nvidia
nvidia_uvm

Save (Ctrl+X) and rebuild initramfs:

update-initramfs -u -k all

2.4 Create udev rules

So that /dev/nvidia* device nodes are created when the modules load:

nano /etc/udev/rules.d/70-nvidia.rules

# /etc/udev/rules.d/70-nvidia.rules
# Create /dev/nvidia0, /dev/nvidia1 ... and /dev/nvidiactl when nvidia module is loaded
KERNEL=="nvidia", RUN+="/bin/bash -c ''/usr/bin/nvidia-smi -L''"

# Create the CUDA node when nvidia_uvm CUDA module is loaded
KERNEL=="nvidia_uvm", RUN+="/bin/bash -c ''/usr/bin/nvidia-modprobe -c0 -u''"

Save (Ctrl+X).

3. NVIDIA driver persistence service

The persistence daemon keeps the GPU initialised between uses, which avoids the latency hit and occasional state loss that happens when the kernel module is loaded and unloaded repeatedly:

cd /opt/nvidia
git clone https://github.com/NVIDIA/nvidia-persistenced.git
cd nvidia-persistenced/init
./install.sh
reboot

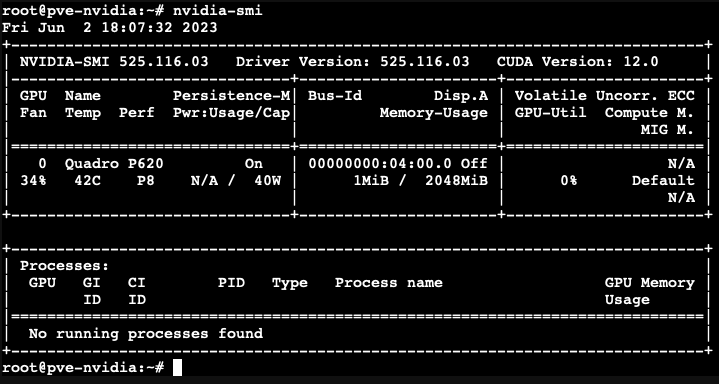

Verify the driver is loaded and the service is running after reboot:

nvidia-smi

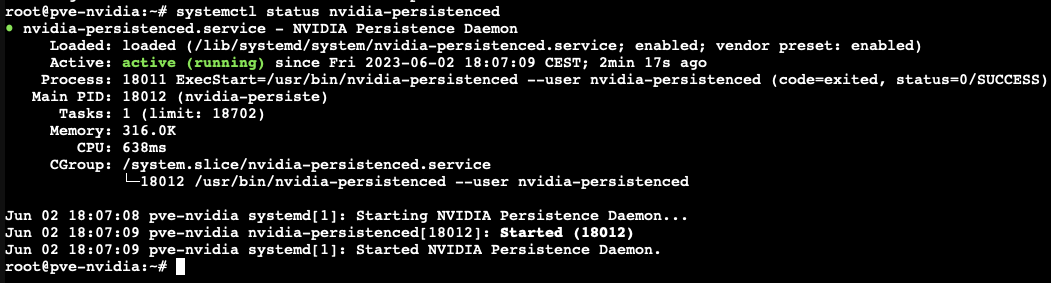

systemctl status nvidia-persistenced

4. (Optional) Lift the NVENC concurrent-session limit

Consumer NVIDIA GPUs ship with a hardcoded limit on the number of simultaneous NVENC encoding sessions (typically 3, 5 or 8 depending on generation). The keylase patch removes that restriction. Useful when running Plex / Jellyfin / Frigate transcoding workloads.

cd /opt/nvidia
git clone https://github.com/keylase/nvidia-patch.git
cd nvidia-patch

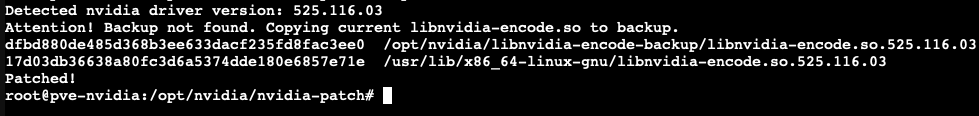

./patch.sh

The patch must be re-applied after every driver update. The keylase repo also includes patch-fbc.sh for the FBC (frame buffer capture) limit if you need it.

5. Configure an LXC container to use the GPU

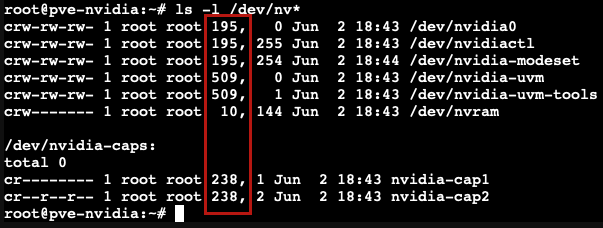

5.1 Identify the device numbers

On the host:

ls -l /dev/nv*

Note the major numbers — they vary between systems. Typical values:

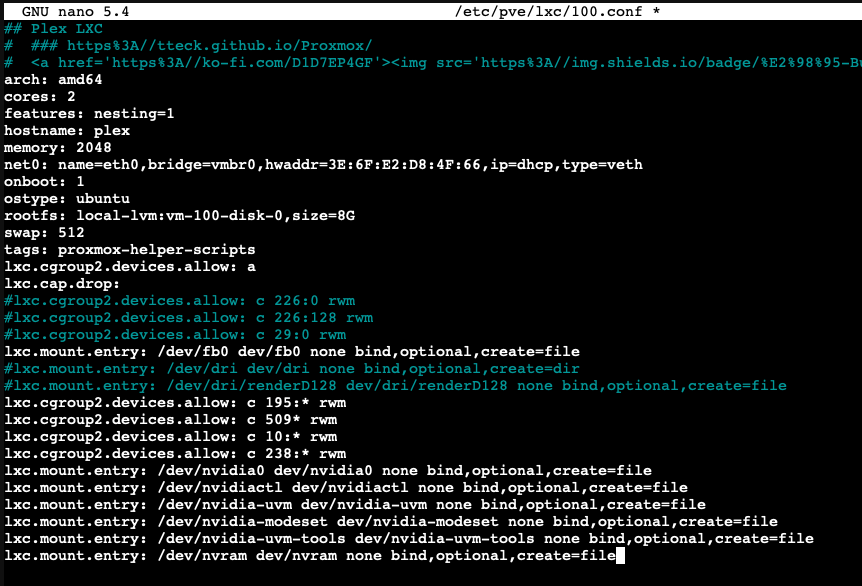

5.2 Edit the LXC config

Stop the container first if it's running. Open its config file (replace <CTID> with the container ID):

nano /etc/pve/lxc/'<'CTID'>'.conf

Comment out any pre-existing lxc.cgroup2.devices.allow or /dev/dri lines that conflict, then append the NVIDIA wiring (adjust the major numbers to match what ls -l /dev/nv* showed on your host):

lxc.cgroup2.devices.allow: c 195:* rwm
lxc.cgroup2.devices.allow: c 509:* rwm
lxc.cgroup2.devices.allow: c 10:* rwm
lxc.cgroup2.devices.allow: c 238:* rwm
lxc.mount.entry: /dev/nvidia0 dev/nvidia0 none bind,optional,create=file
lxc.mount.entry: /dev/nvidiactl dev/nvidiactl none bind,optional,create=file
lxc.mount.entry: /dev/nvidia-uvm dev/nvidia-uvm none bind,optional,create=file
lxc.mount.entry: /dev/nvidia-modeset dev/nvidia-modeset none bind,optional,create=file
lxc.mount.entry: /dev/nvidia-uvm-tools dev/nvidia-uvm-tools none bind,optional,create=file
lxc.mount.entry: /dev/nvram dev/nvram none bind,optional,create=file

Save (Ctrl+X) and start the container.

5.3 Install the driver inside the container

The kernel module is already loaded by the host — the container only needs the userland libraries that match the same driver version:

mkdir -p /opt/nvidia
cd /opt/nvidia
wget https://download.nvidia.com/XFree86/Linux-x86_64/'<'VERSION'>'/NVIDIA-Linux-x86_64-'<'VERSION'>'.run
chmod +x NVIDIA-Linux-x86_64-'<'VERSION'>'.run

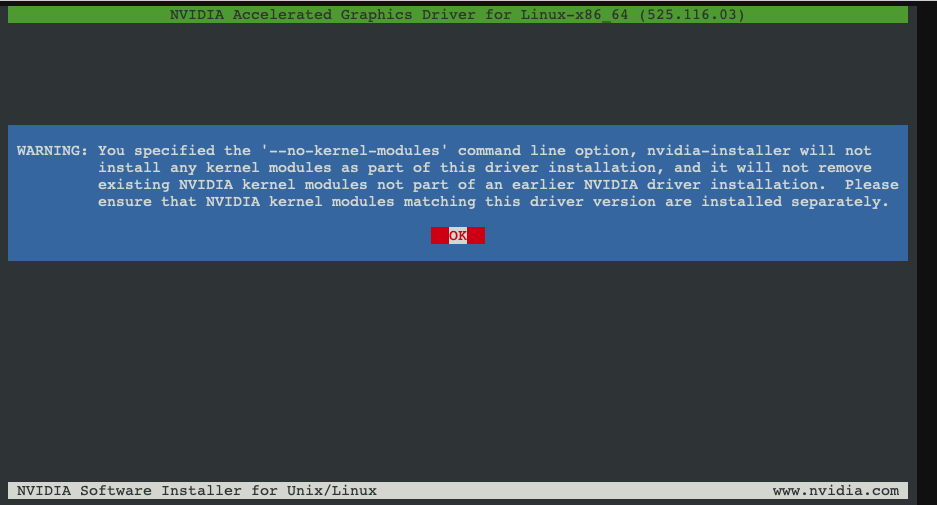

./NVIDIA-Linux-x86_64-'<'VERSION'>'.run --no-kernel-module

Accept the defaults at every prompt.

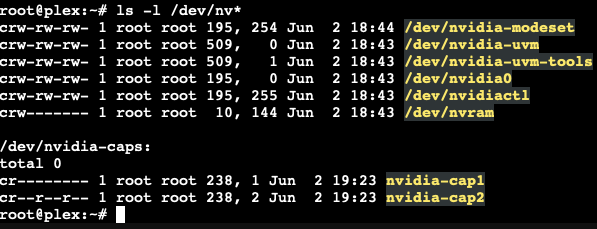

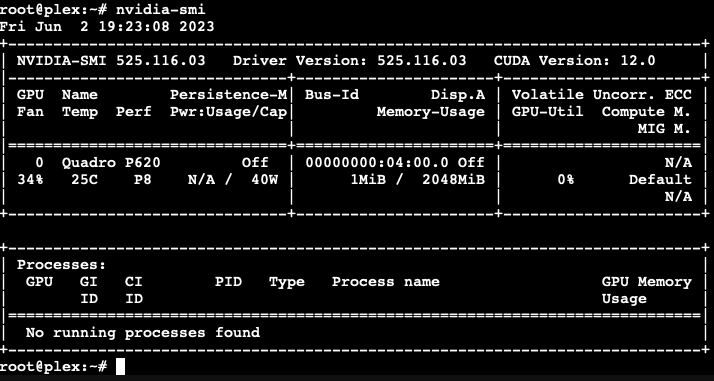

5.4 Verify inside the container

nvidia-smi

ls -l /dev/nv*

You should see the GPU listed and the device nodes mounted into the container's filesystem.

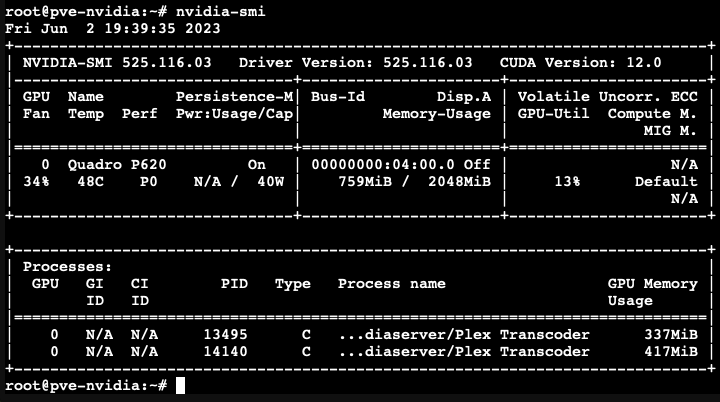

5.5 Confirm a real workload picks up the GPU

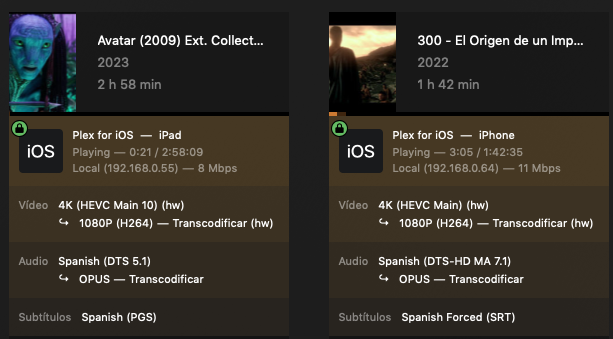

For Plex / Jellyfin, transcode a video and check the dashboard / logs — hardware-accelerated transcoding is now active.

To wire the GPU into another container, repeat section 5 for each additional CTID. The driver install inside the container only needs to be done once per container.

6. (Optional) NVIDIA Docker inside an LXC

If the container runs Docker and you want containers-inside-the-container to use the GPU, install nvidia-docker2. From inside the LXC:

wget https://raw.githubusercontent.com/MacRimi/manuales/main/NVIDIA/nvidia-docker.sh
chmod +x nvidia-docker.sh
./nvidia-docker.sh

The script handles the repository setup, package install and Docker daemon configuration in one go.

Troubleshooting

• nvidia-smi on the host shows the GPU, but inside the container it errors with "No devices found": the driver versions don't match. Re-download the same <VERSION> inside the container and run with --no-kernel-module.
• Driver compile fails on the host with "No precompiled kernel interface was found": kernel headers are missing or out of sync. Re-run apt-get install pve-headers-$(uname -r) and confirm uname -r matches the running kernel.
• NVENC sessions still capped after applying the patch: the patch was overwritten by a driver update. Re-run ./patch.sh from /opt/nvidia/nvidia-patch.
• GPU stops responding after a few hours of idle: persistence daemon isn't running. Check with systemctl status nvidia-persistenced and start / enable it.
• Container starts but ls /dev/nv* shows nothing: the major numbers in the LXC config don't match the host's. Re-run ls -l /dev/nv* on the host and adjust the lxc.cgroup2.devices.allow lines accordingly.
